50% off while stocks last.

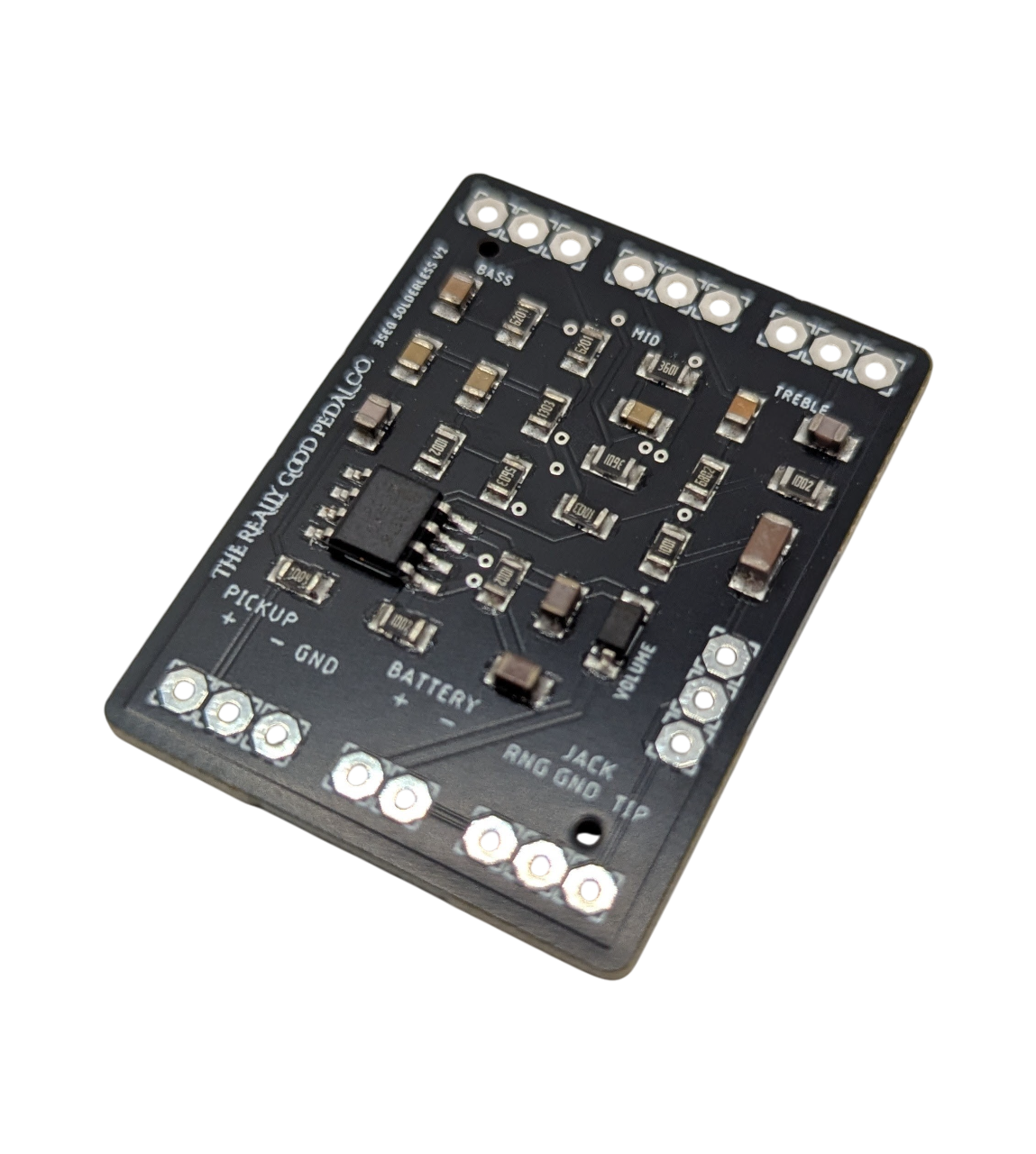

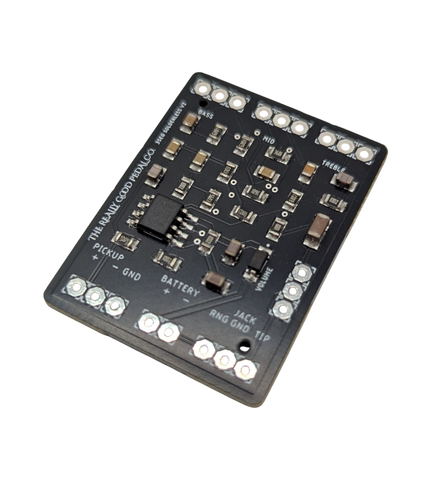

These PCBs are leftover from the first version of the S3EQ solderless kits for Stingray style basses. This version of the PCB uses the same opamp as the original USA 3 band preamp so 9v only on this one, 18v will damage it.
This is the perfect upgrade for your 2 band SBMM or other Music Man style bass.

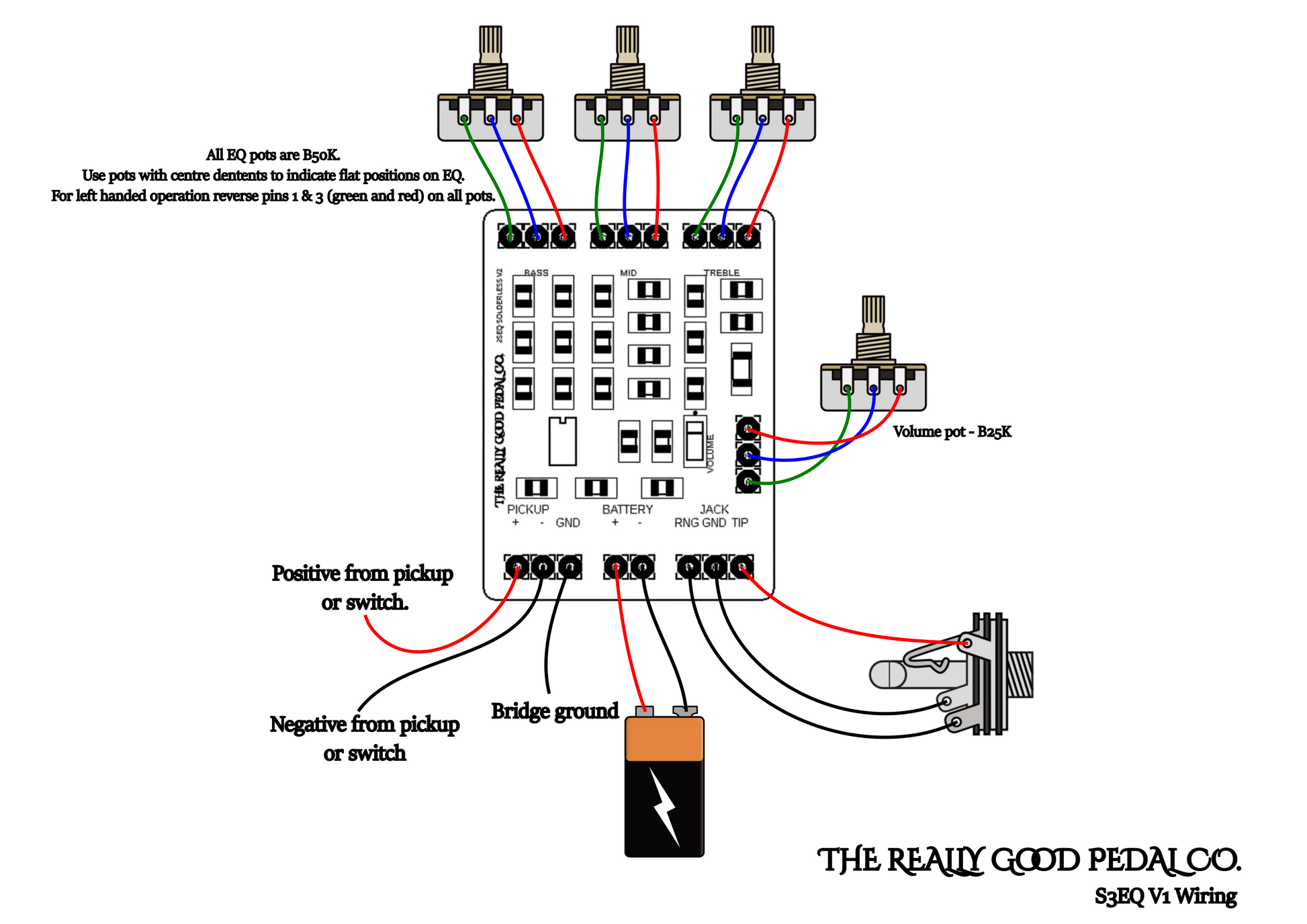

This listing is for the PCB only and requires soldering to install. All connections are clearly labelled, all you have to do is solder in your own pickup/s, pots, battery and jack.
Hardware needed to complete the install:
1 x B25K Volume Pot
3 x B50K Pots OR 1 x B50K Concentric & 1 x B50K. Use pots with centre detents to indicate the flat positions on the EQ.
1 x Stereo Output Jack
1 x 9v Battery Clip/Box.
If you need 18v+ operation and more flexible wiring options check out the PCB only version of the S3EQ
