The Really Good Onboard Preamp Prewired 250K Volume/Blend
The Really Good Onboard Preamp Prewired 250K Volume/Blend
Alert me if this item is restocked.
We often restock popular items or they may be returned by the other customers. If you would like to be notified when this happens just enter your details below.
The Really Good Onboard Preamp Prewired 250K Volume/Blend
We respect your privacy and don't share your email with anybody.
Alert me if this item is restocked
We have cancelled your request.
Couldn't load pickup availability
These harnesses are made to order, please allow 3-5 business days when in stock.
For other configurations please send me a message with the contact form.

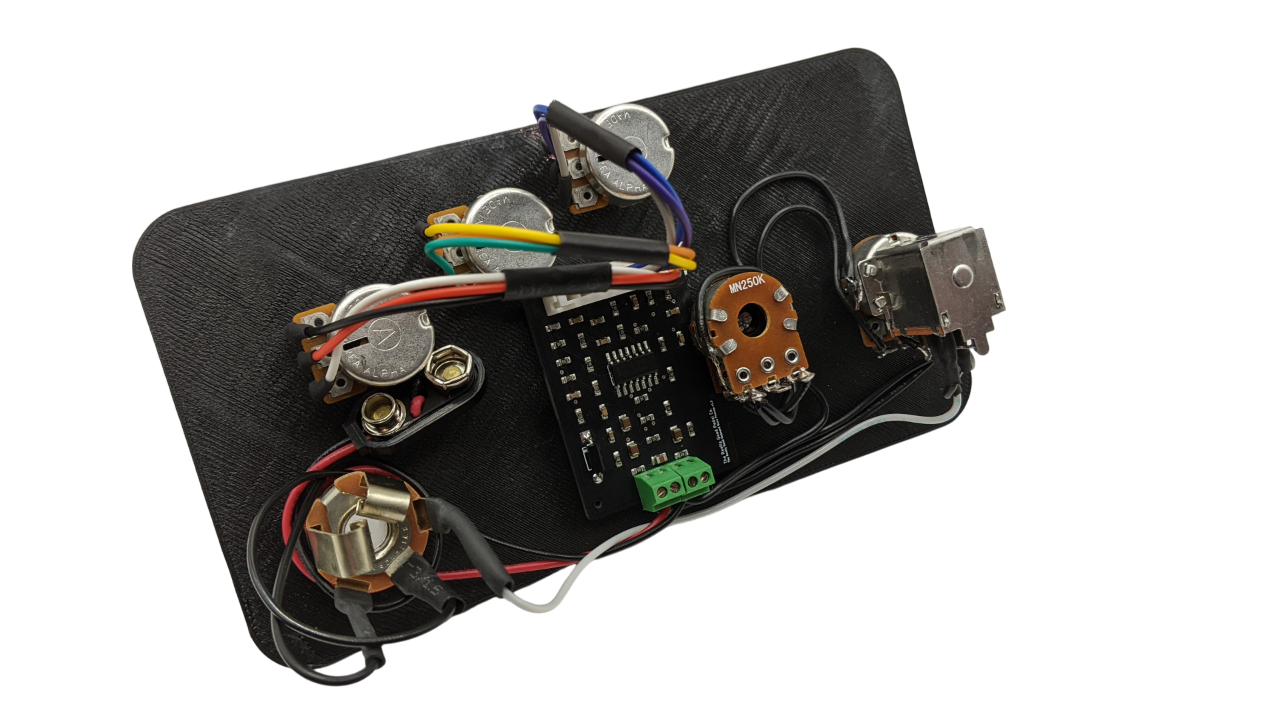

This is a completely prewired harness with our The Really Good Onboard Preamp preinstalled in a volume/pickup blend configuration. All you need to do is wire in your two pickups and connect your bridge ground cable and you're good to go.
This model is wired with 250K volume and blend pots which is common for most bass pickups but be sure to check yours before purchasing. All pots are T18 shafts for push on knobs except for the concentric pot options which are both solid shaft.
Each harness is mounted on a 3d printed plate. You will need to solder your pickup positives to the blend pot and connect the ground wires.
Active pickups will not work with this configuration.

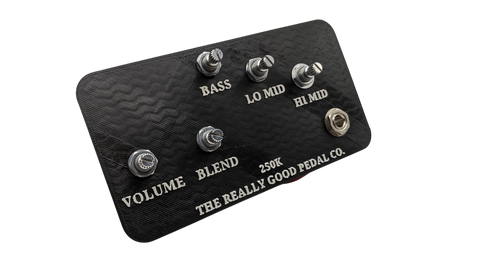

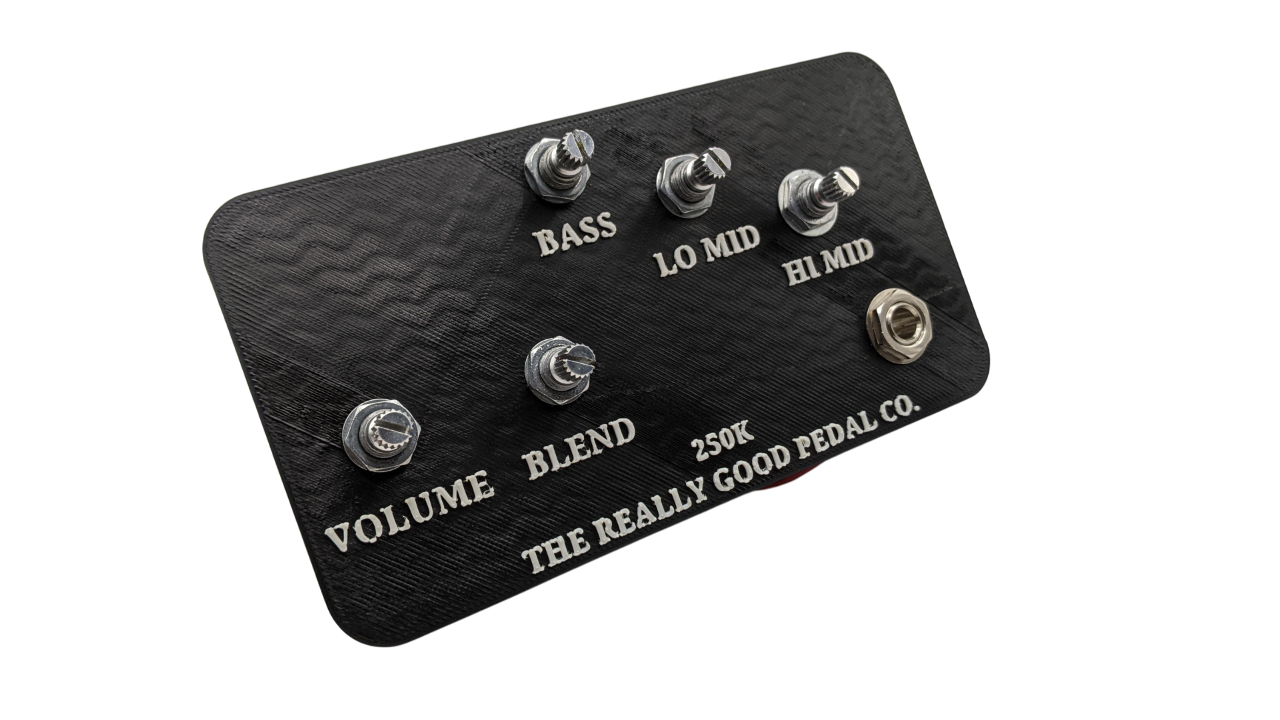

Controls
- Volume (Push/Pull Active/Passive)
- Blend
- Bass
- Lo Mid
- Hi Mid
Parts Used:
- The Really Good Onboard Preamp
- 250K Audo Alpha Push Pull Pot
- 250K MN Taper Blend Pot
- 3 x Alpha B50K Pots with Centre Detents.
- Rean Neutrik Stereo Jack with Battery Clip
