Introducing the Mid Monster Custom.
The Mid Monster Custom allows the user to customize the centre frequencies of the Lo and Hi Mid controls on the preamp to their preference by changing capacitor values in the circuit.
Designed with experimenters in mind, PCB footprints for the capacitors that control the centre frequency of these controls have been changed to use through hole components to allow the user to easily experiment with different values.
There are also two DIP switch footprints that can be kept onboard or wired to push/pull pots or toggles to allow the user to switch between two frequency options for each control.

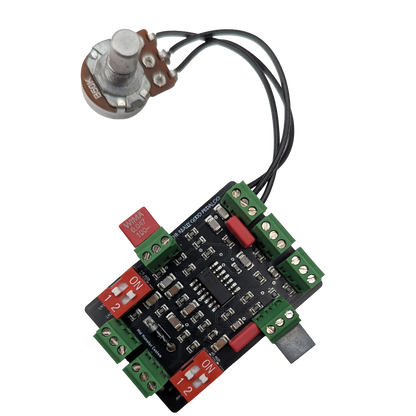

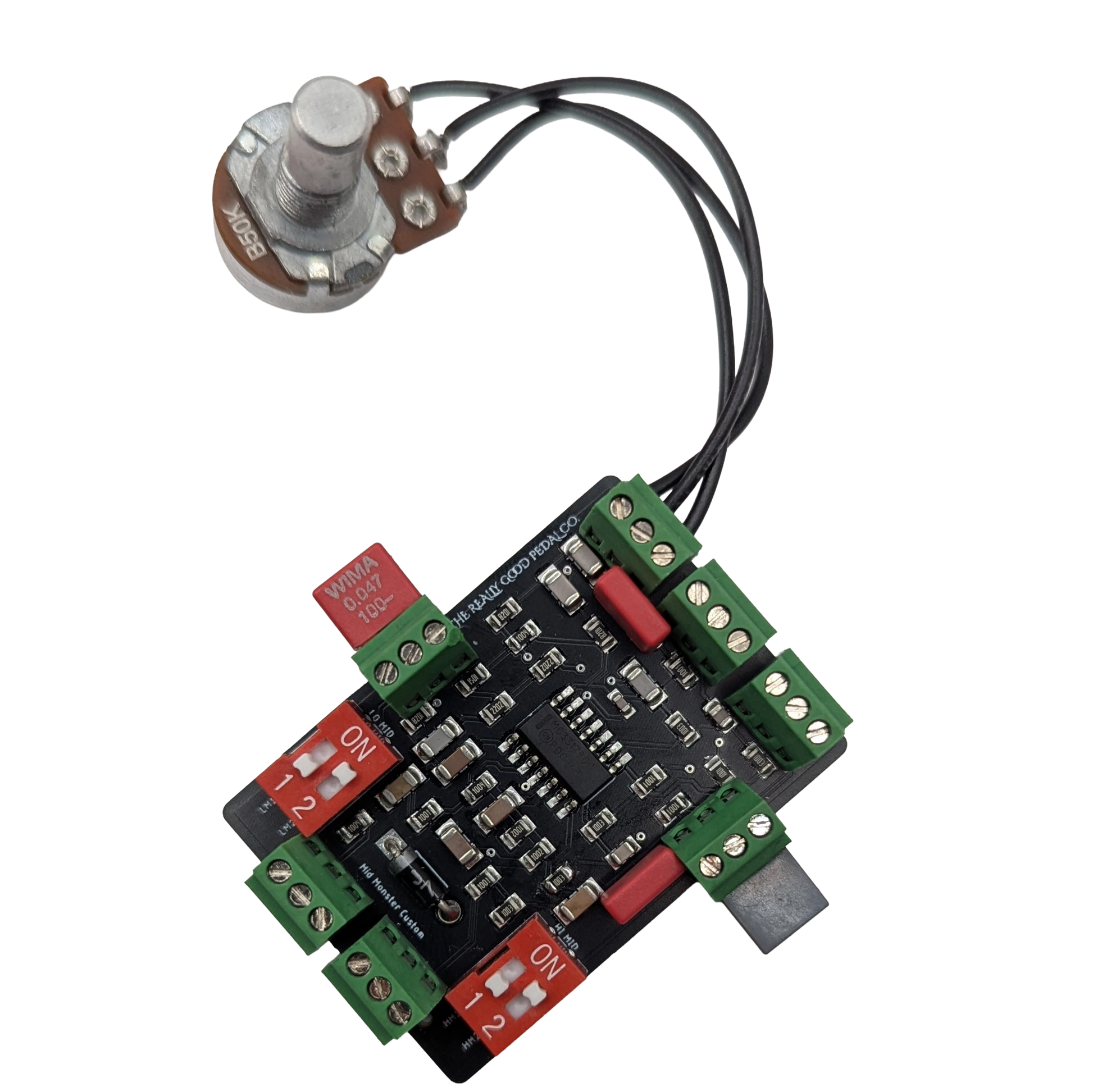

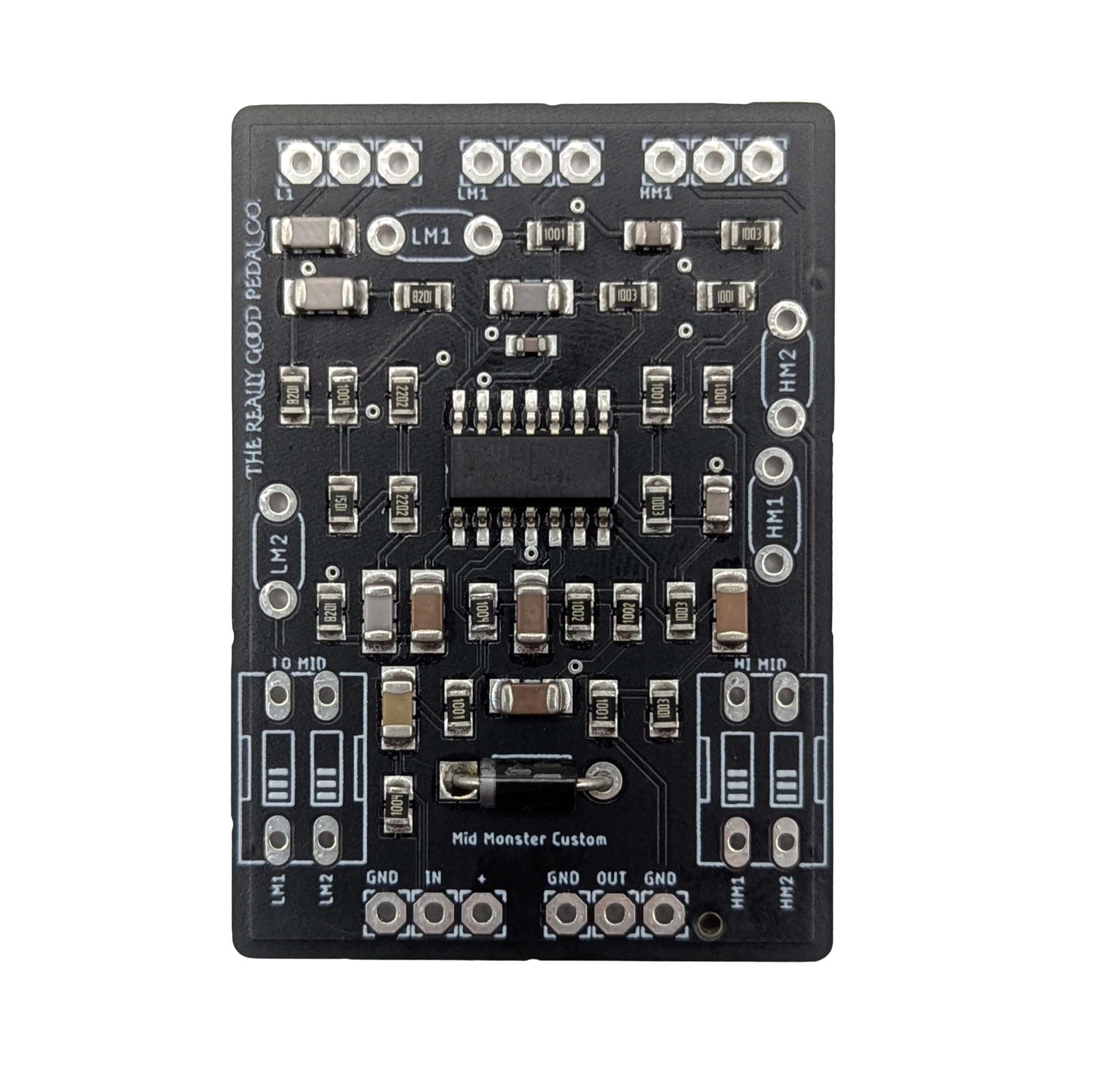

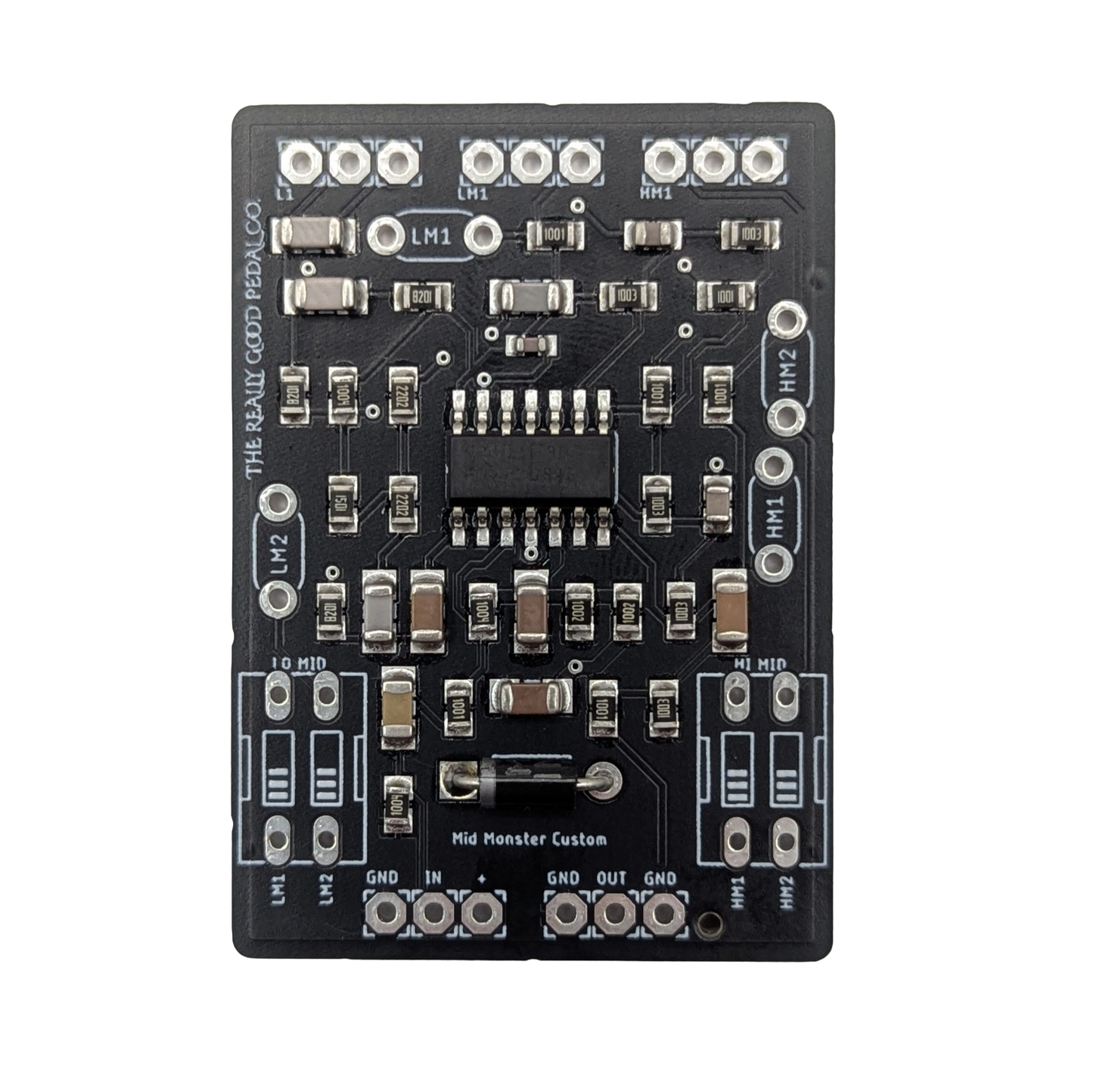

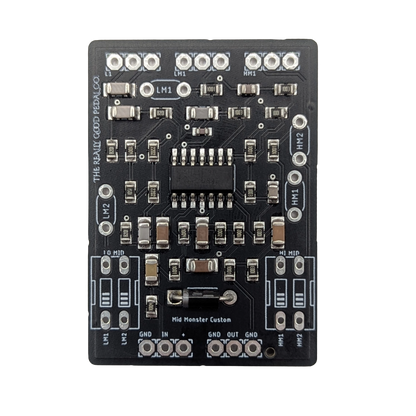

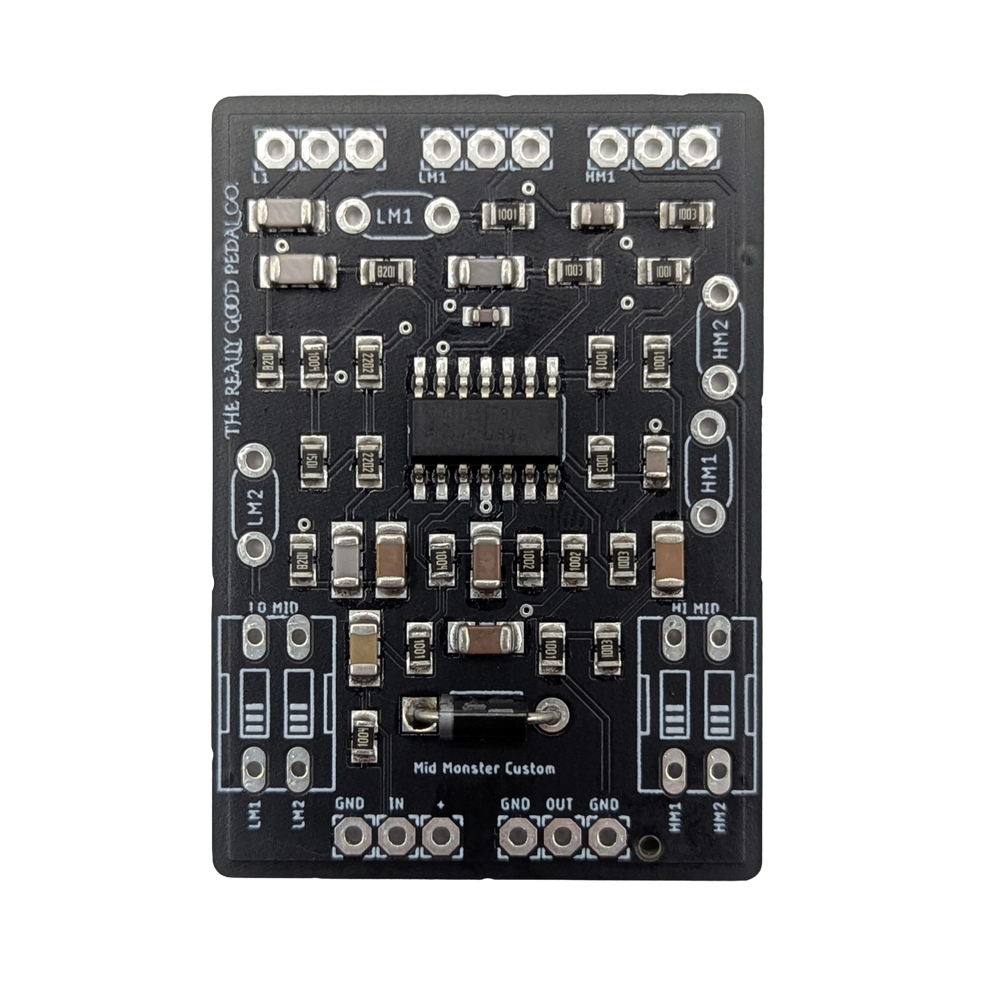

*PCB only as shown in the first picture, DIP switches and non populated caps are not included.
Specs
Power Supply: 9-27V
Current Draw: ~2ma
PCB Size: 45 x 32 x 3mm
Pots Required: 3x B50K. Use pots with centre detents to indicate flat positions on EQ. Click here for our range of pots.
Controls
Bass - +/-12dB @70Hz
Mid - +/-12dB @500Hz
Hi Mid - +/-12dB @2.8kHz
