Electric Lover Flanger 1.1v – Building Docs
Electric Lover Flanger – Drilling templates
Project overview
Based on EHX Electric Mistress, adapted for the right functionality at 9v. It offers very warm and rich flanging while maintaining low noise operation and flexibility in its controls.
Introduction
This pedal features the following additions to the original circuit:
- A buffered clock signal to the BBD
- FX loop for through-zero flanging
- Output gain stage to match or exceed the bypass volume.
Controls
- Range
- Feedback
- Rate
Customer Reviews

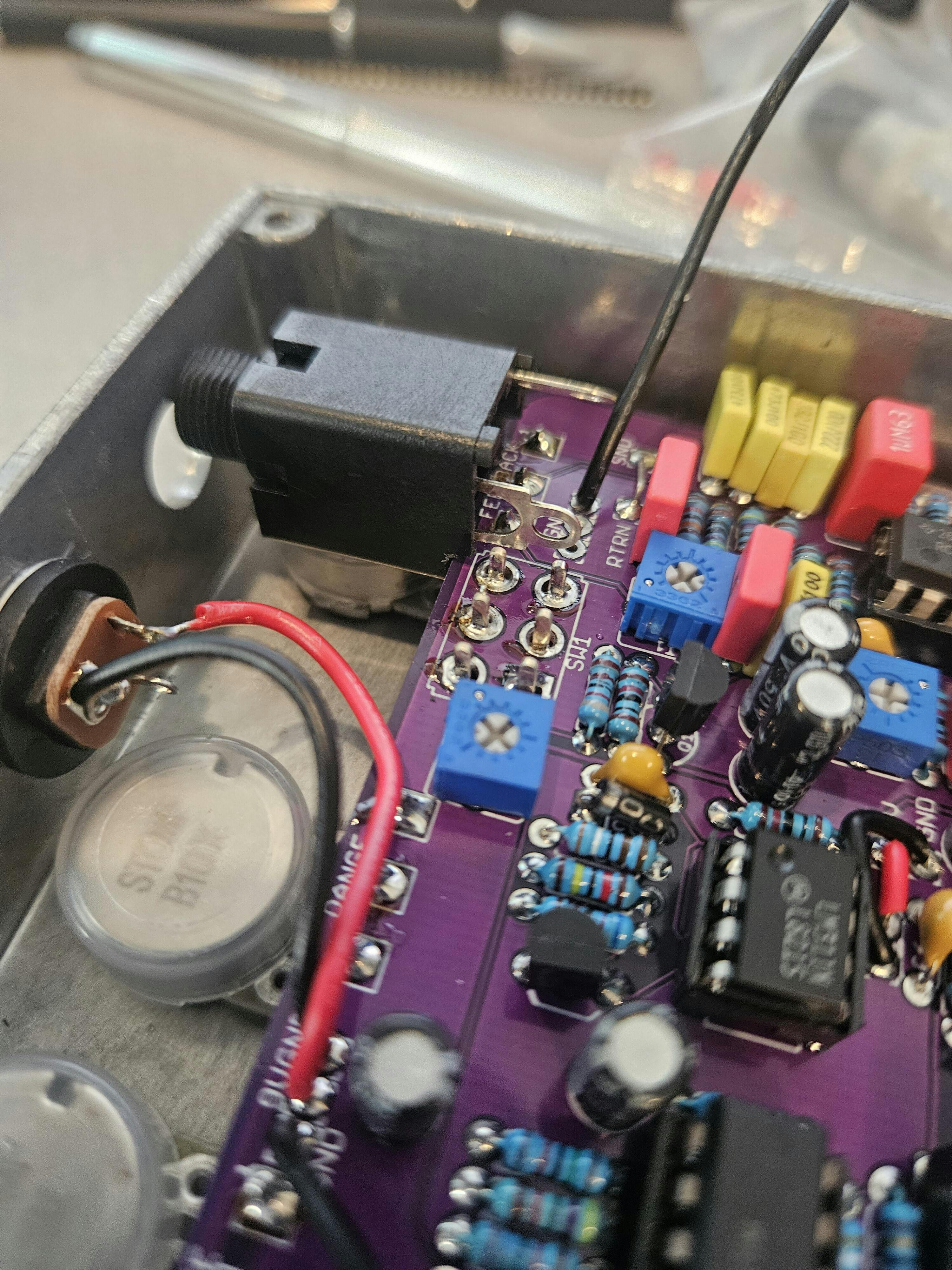

Just finished building. Used the provided template to drill enclosure, and after assembling I found that there is no way to add the jacks to it since the distance between center of the hole for jacks and the pots is only 5mm, and a standard enclosed jack is 15mm (or 7.5mm center to side). This probably should have used a 1509BBS enclosure, not a 1509BB. Now I have to order another enclosure.
