*Build doc in progress...
Drill Template

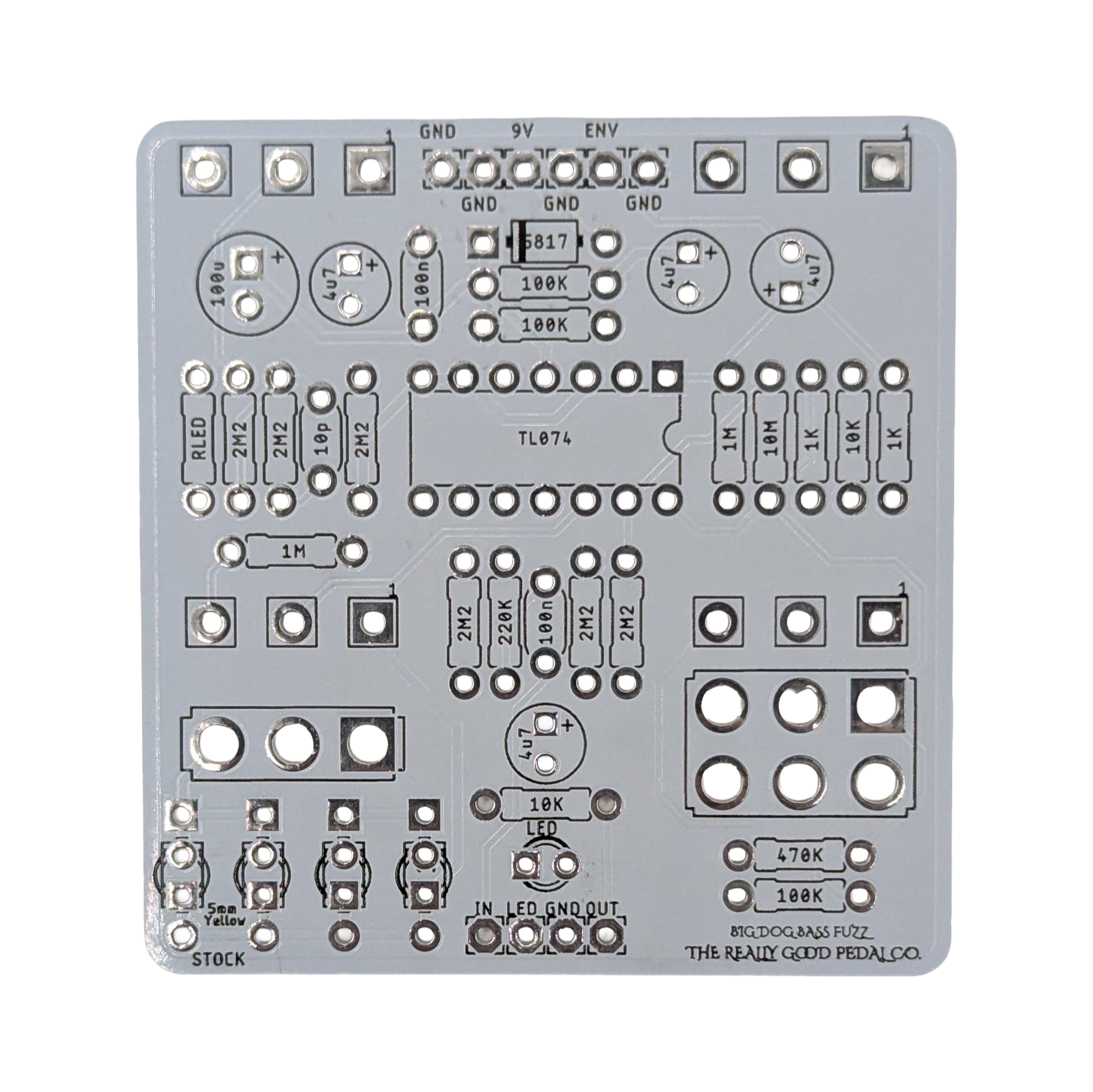

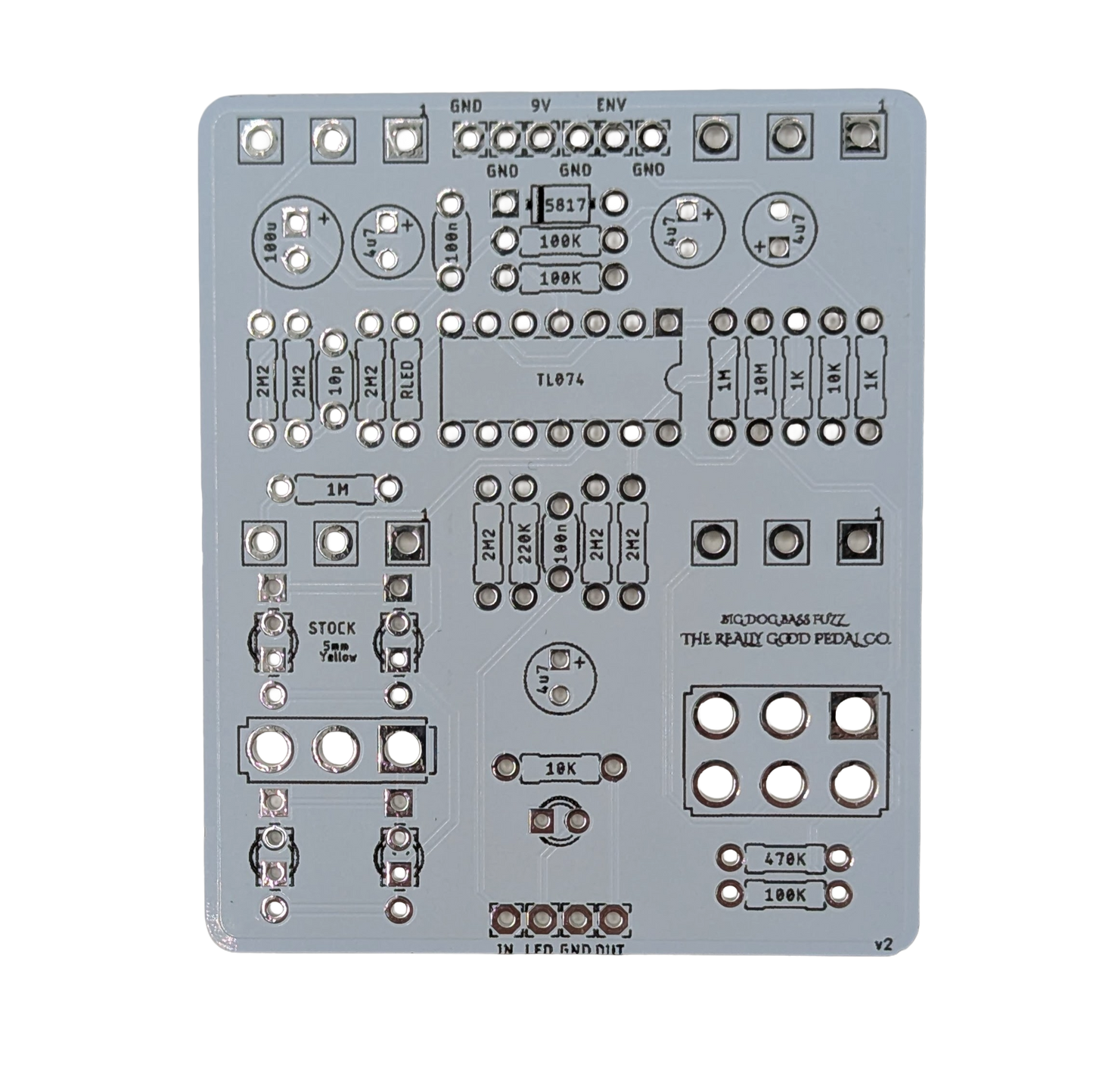

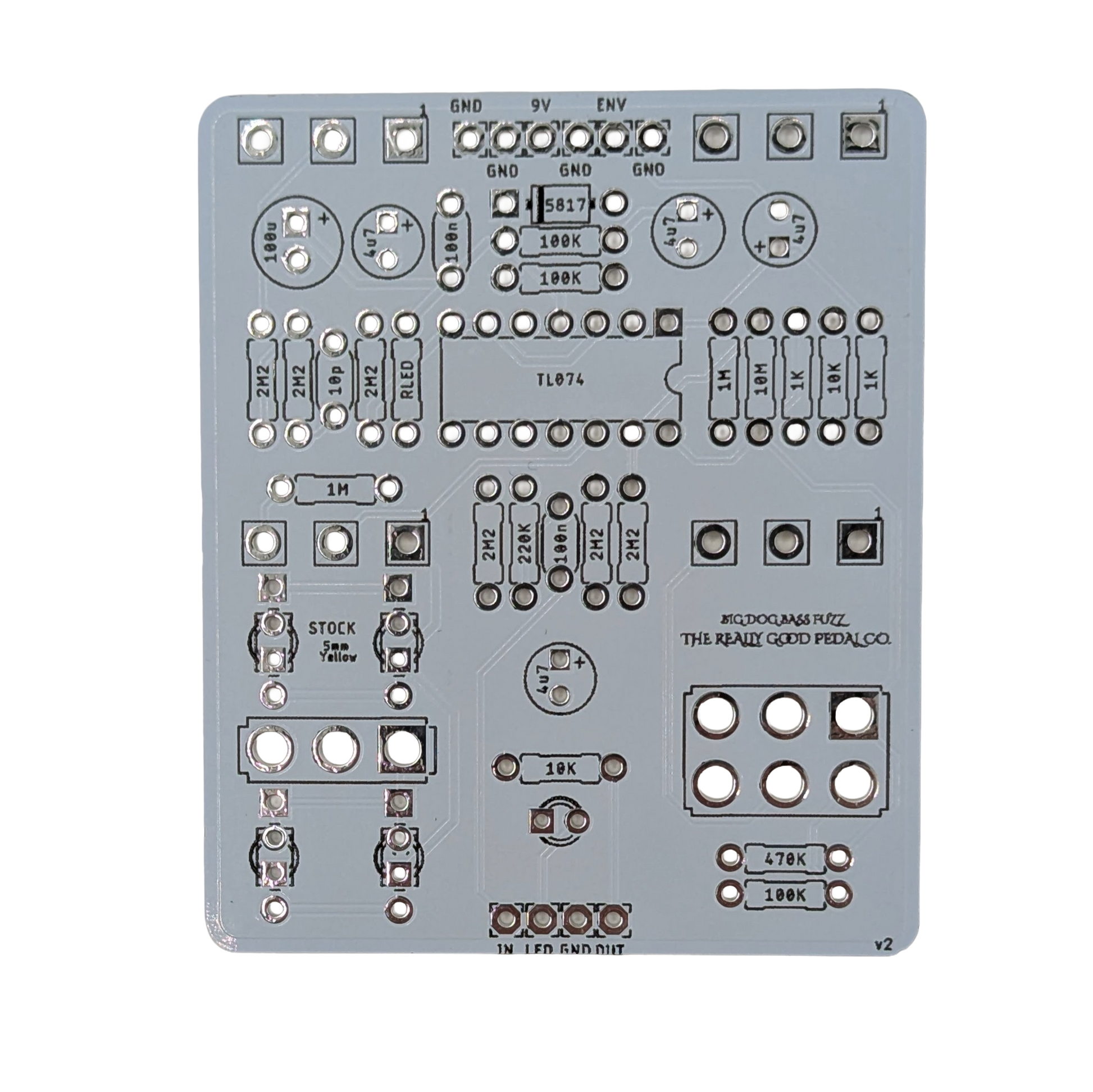

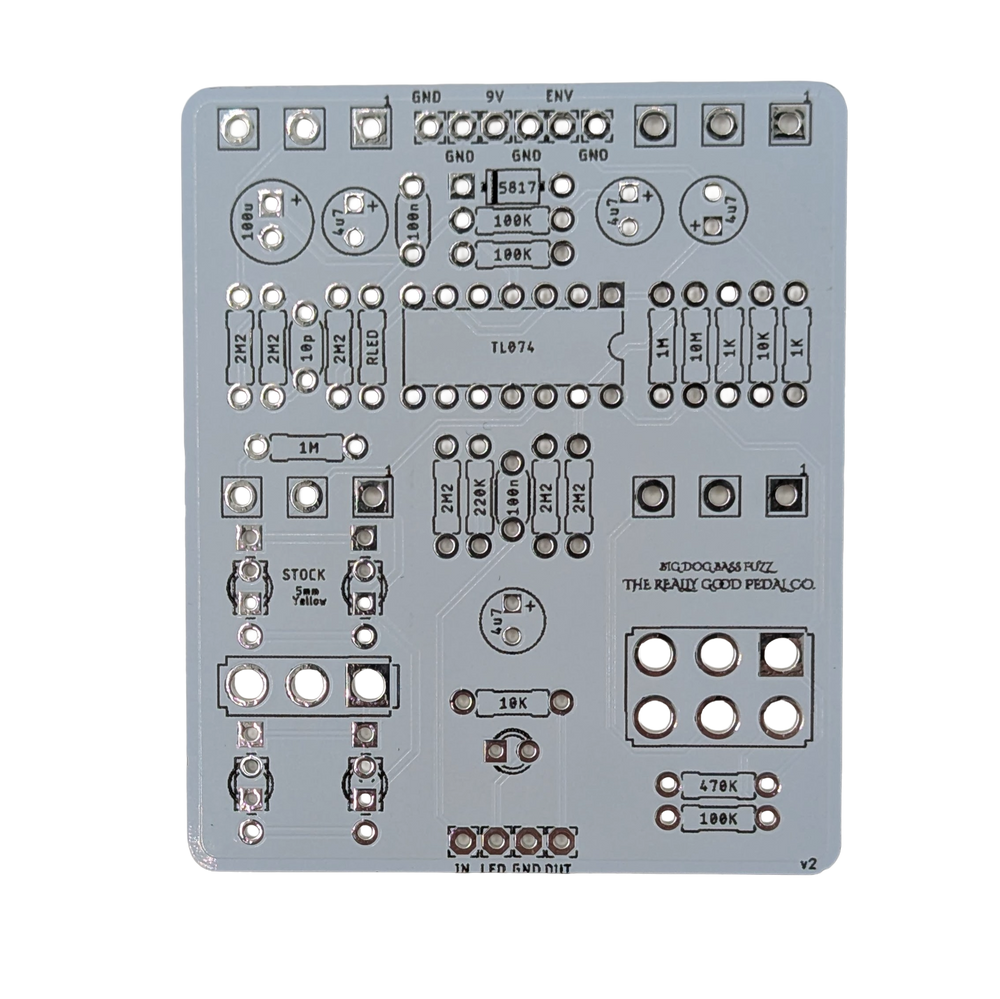

Based on the Chunk Systems Brown Dog, this PCB delivers the unique bass fuzz tones and features available from the original along with a few small tweaks.
Our version includes an improved power section, simplified true bypass switching and an extra toggle switch for a second clipping diode option. Multiple diode footprints are available so the builder can easily experiment with different types of diode packages,
If you're familiar with the original Brown Dog pedal you might remember it had an extra jack that allowed it to connect with the 00Funk envelope filter (PCB coming soon). That's included here too if you want to use it. It's essentially a +12db line out that may be useful for other things too.
Controls
- Clean: Controls the volume of the clean signal. Boosts signal +12db above unity.
- Fuzz: Controls the volume of the fuzz signal
- Drive: Adjusts the voice of the fuzz signal. Turn down for more traditional Fuzz tones, turn up for crazy synth like distortion.
- Gate: Noise gate for the Fuzz signal. The more it's turned up the harder you have to play to make the signal come through.
Specs
- Enclosure Size: 125B
-
Power Supply: Standard 9v negative tip.
- Switching: Standard True Bypass
