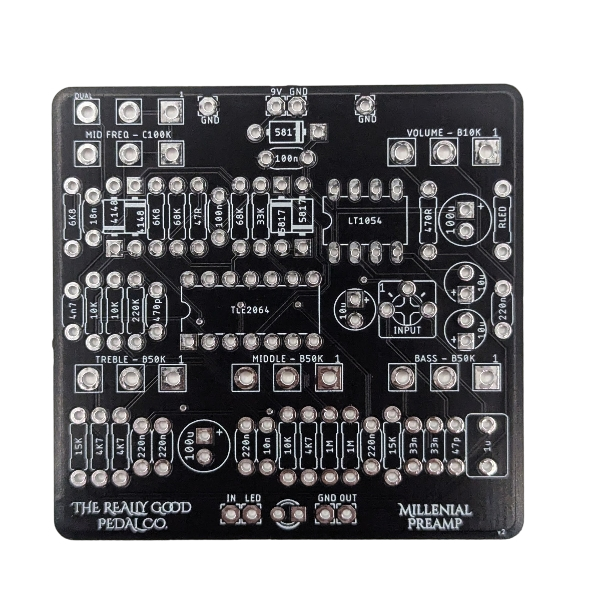

We only ask for one thing in exchange for this free PCB - leave an honest review or email us feedback once you've completed the build. This is the final prototype version of the PCB and may have some small labelling issues, these will be fixed on the final version.



Be sure to read the build doc and notes before ordering.

This one is based on the Peavey Millennium onboard preamp. It features a couple of mods to make it usable with any bass while keeping faithful to original EQ circuit.

The original circuit was designed to be driven by a pair of super-hot active pickups so I’ve added an input buffer to make up the gain difference on the input. You can also fine tune in the input gain with the INPUT trimmer.

Another addition is an onboard voltage doubler to run the preamp at 18v (like the original) from a normal 9v pedal power supply.

Unlike most of the other PCBs in this series this model isn’t recommended for use as an onboard preamp due to the aforementioned mods.

Controls:
- Volume
- Mid Frequency – 250Hz – 1.2kHz
- Bass - +/- 15db @40Hz
- Mid - +/- 12-15db
- Treble - +/- 15db @ 8kHz

- Power Supply: 9vDC
- Bypass Type: True Bypass
- Enclosure Size: 125B
